Tenda TX12 Pro v2.0 AX3000 Gigabit Wi-Fi-6 Router

Description

Tenda TX12 Pro v2.0 AX3000 Full Specification

Item	Router
Model	✅ TX12 Pro v2.0 AX3000
Brand	Tenda
Router Type	Wi-Fi
Antenna	4+ Antenna
Ports	3 x Gigabit LAN Ports
Wi-Fi	Dual Band
WAN Port	1 x Gigabit WAN Port
Speed	5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps
Protocol	IEEE802.3, IEEE802.3u, IEEE802.3ab IPv4 & IPv6
Range	Up to 3500 sq.ft.
Security	WPA2-PSK WPA3-SAE/WPA2-PSK Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption

Hardware
- Antenna: 5 x 6dBi external antennas
- Button
  - 1 x WPS/Mesh button
  - 1 x Reset button
- Power
  - Input：AC 100-240V~50/60Hz
  - Output: DC 12V, 1A
- LED Indicator: 1 x LED
Basic Information
- MU-MIMO
- OFDMA: 1024-QAM
- SSID broadcasting and hiding
- Beamforming signal directional transmission technology: 160MHz
Special
- Wi-Fi+(Mesh System)
- Smart diagnosis
- IPTV
- IPv6
- Smart LED on/off
Wireless
- Frequecny
  - CE
    - 2.4G: 2412-2472MHz(CH1-CH13)
    - 5G: 5150-5350MHz(CH36-CH64)
  - FCC
    - 2.4G: 2412-2462MHz(CH1-CH11)
    - 5G: 5150-5350MHz(CH36-CH64)
    - 5725-5850MHz(CH149-CH165)
- Transmission Power
  - CE
    - 20 dBm (2.4 GHz)
    - 23 dBm (5 GHz)
  - FCC
    - 30 dBm (2.4 GHz)
    - 30 dBm (5 GHz)
Function
- Support App and web management
- Bandwidth Control
- Guest Network
- MAC Address Clone
- Supports black list and whitelist
- Unify 2.4 GHz & 5 GHz
- Static Routing
- Remote Web Management
- Backup & Restore configurations
- Firmware upgrade online
Software
- Internet Connection Type
  - PPoE, Dynamic IP, Static IP
  - PPPoE(Russia), PPTP(Russia), L2TP(Russia)
  - Unify, Maxis, Maxis-special, Celcom, Digi
- Operating Mode
  - Router Mode
  - AP Mode
  - Universal Repeater Mode（Client+AP,WISP
- Parental Control
  - Client Filter
  - URL Filter
  - Time Limit
- DHCP
  - DHCP Server
  - DHCP Client List
  - DHCP Static IP Address Reservation and Allocation
- Virtual Server: Port Forwarding, DMZ Host, UPnP
- Firewall
  - ICMP Flood Attack Defense
  - TCP Flood Attack Defense
  - UDP Flood Attack Defense
  - Block Ping From WAN
- DDNS: DynDNS, no-ip, oray, 88ip
- VPN
  - IPSec Transparent Transmission
  - PPTP Transparent Transmission
  - L2TP Transparent Transmission
  - PPTP VPN Server
  - PPTP VPN Client
  - L2TP VPN Client
Dimension: 267 x 166 x 222 mm

Tenda TX12 Pro v2.0 AX3000 Description

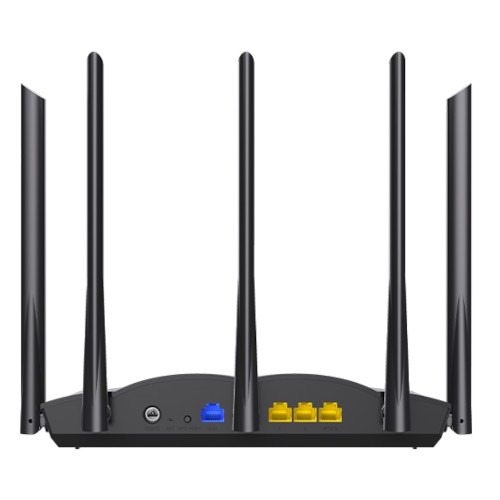

This Tenda TX12 Pro v2.0 AX3000 is a gigabit Wi-Fi-6 router which has 5 x 6dBi external antennas, so it can cover up to 3500 sq ft. area and provides in 5 GHz up to 2402 Mbps and in 2.4 GHz up to 574 Mbps data transmission rate. Also, it has 3 x Gigabit LAN Ports and 1 x Gigabit WAN Port as well as 1 x LED indicator. Moreover, its ICMP, TCP, and UDP features ensure strong firewall defense against flood attacks.
